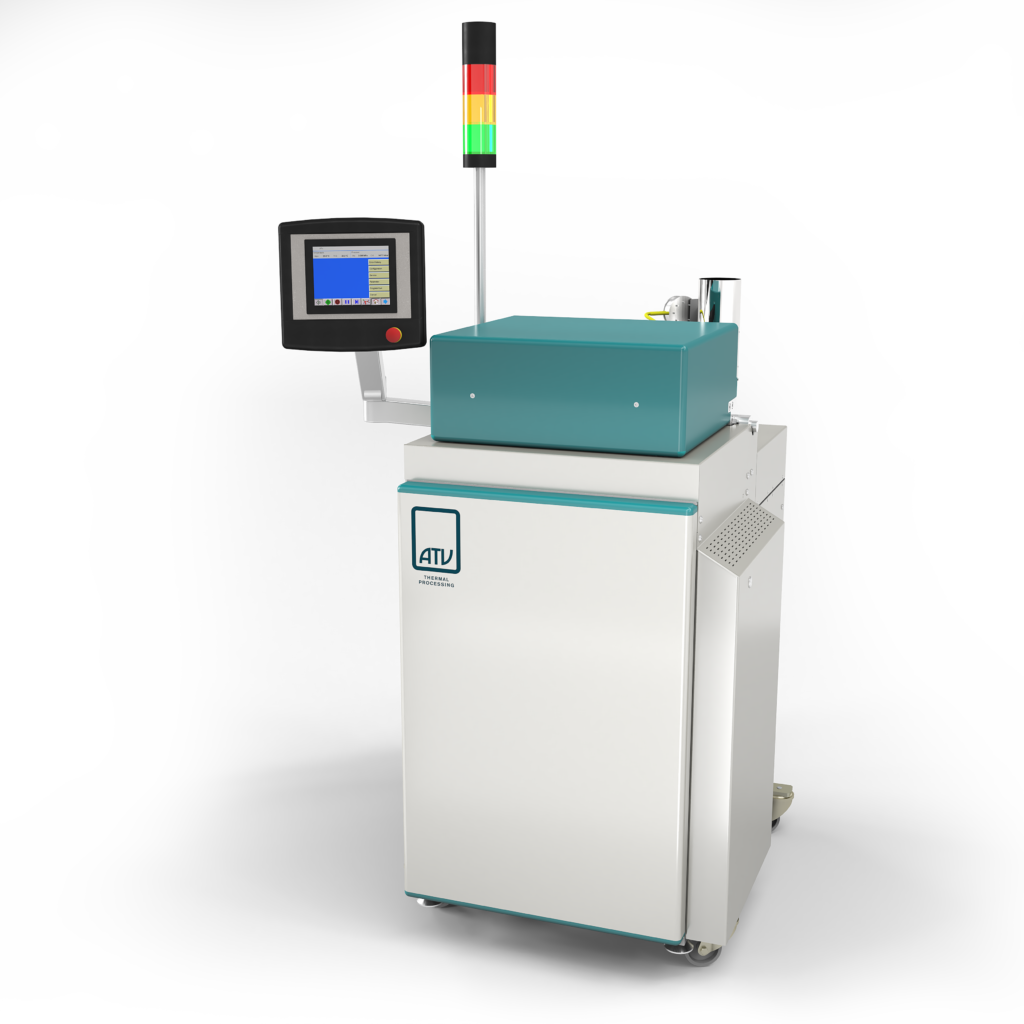

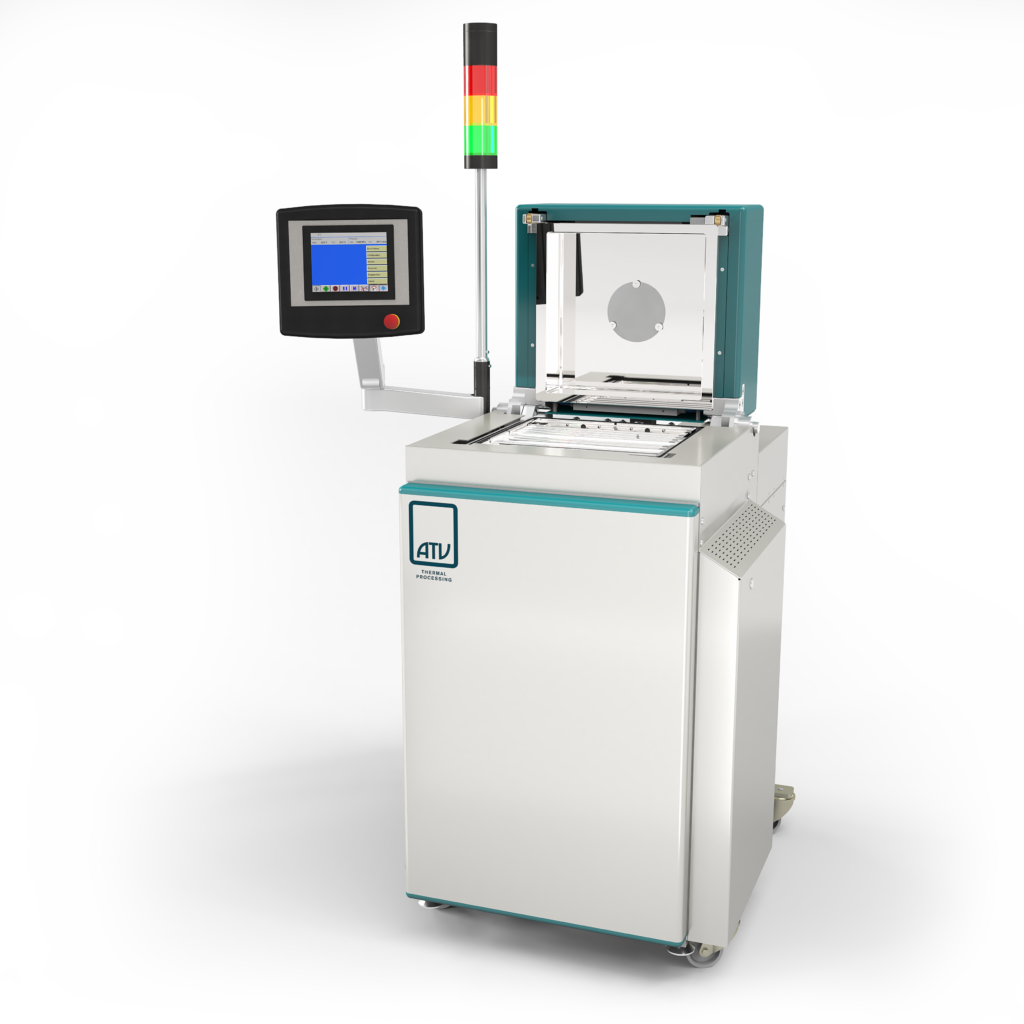

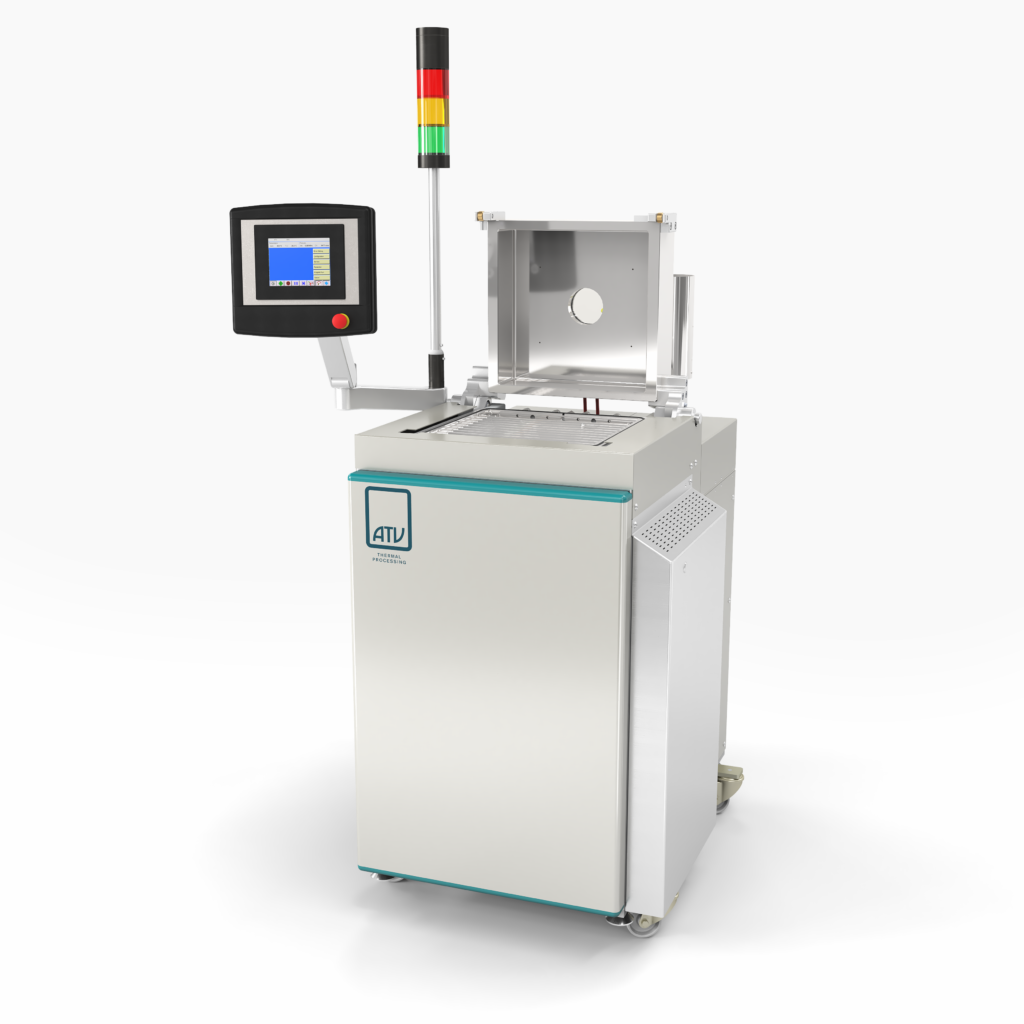

SRO-716 VACUUM REFLOW SOLDERING SYSTEM WITH HIGH VACUUM
IR VACUUM REFLOW SYSTEM FOR R&D PURPOSES AND PILOT LINE PRODUCTION
The SRO-716 High Vacuum System is based on a thermal cold wall reactor and enables precise thermal processes for soldering without voids. The process chamber is heated by powerful infrared lamps controlled by multiple heating zones with a maximum temperature of 450°C (optionally up to 750°C). These ensure homogeneous heating and precise temperature control. The high vacuum system with scroll and turbomolecular pump achieves a vacuum of <5×10-5 mbar, while nitrogen (N₂) ensures controlled cooling. The HCOOH step optimizes wetting and ensures excellent soldering quality. The process is controlled intuitively via the WinATV software, which enables precise adjustment of all process sequences. With a heated area of 314x314mm and a height of 96mm above the heating area, the SRO-716 High Vacuum is compatible with a wide range of electronic components and packages. Ideal for R&D applications and pilot production, this versatile system meets the demands of modern manufacturing technologies and offers maximum flexibility for specific process requirements.
Facts & Options about our SRO-716 High Vacuum Reflow Soldering
HIGHLIGHTS SRO-716-HVAC
- Direct IR Heating
- High Vacuum 10-5 mbar
- Surface touch TC
- Multiple TC monitoring
- Exchangeable Ceramic Heater Plate
- Process temperature 450°C up to 750°C (optional configuration)
- Oxygen < 1.0 ppm with purified N2
- 100 steps / programm
- Automatic lid closing/opening and locking/unlocking
COMMON APPLICATIONS SRO-716-HVAC
- Power Semiconductors (IGBT, SiC-MOSFET)
- Sensors
- MEMS
- High Power LED
- MMICs
- CPV, Laser bar
- Die Attachment
- Hybrid Assembly
- Flip Chip
- Package Sealing
TECHNICAL DATA SRO-716-HVAC
depending on system configuration/optionals
- Dimensions
- 1090 × 705 x 1830mm (LxWxH)
- Weight
- ca. 245 kg (minimum configuration)
- Working Height
- 1000mm ± 40mm
- Maximum Product Height
- up to 96mm
- Heated Area
- 314 x 314mm
- Heating Method
- Array of 12 IR lamps in 3 zones
- Temperature
- Process temperature up to 450°C
- Extended temperature range 750°C (optional)
- Vaccum Level
- 10-5 mbar
OPTIONS SRO-716-HVAC
- Overpressure
- Topheater
- H2 / H2N2
- Custom substrate fixture
- Lift pins
- Additional gas lines
