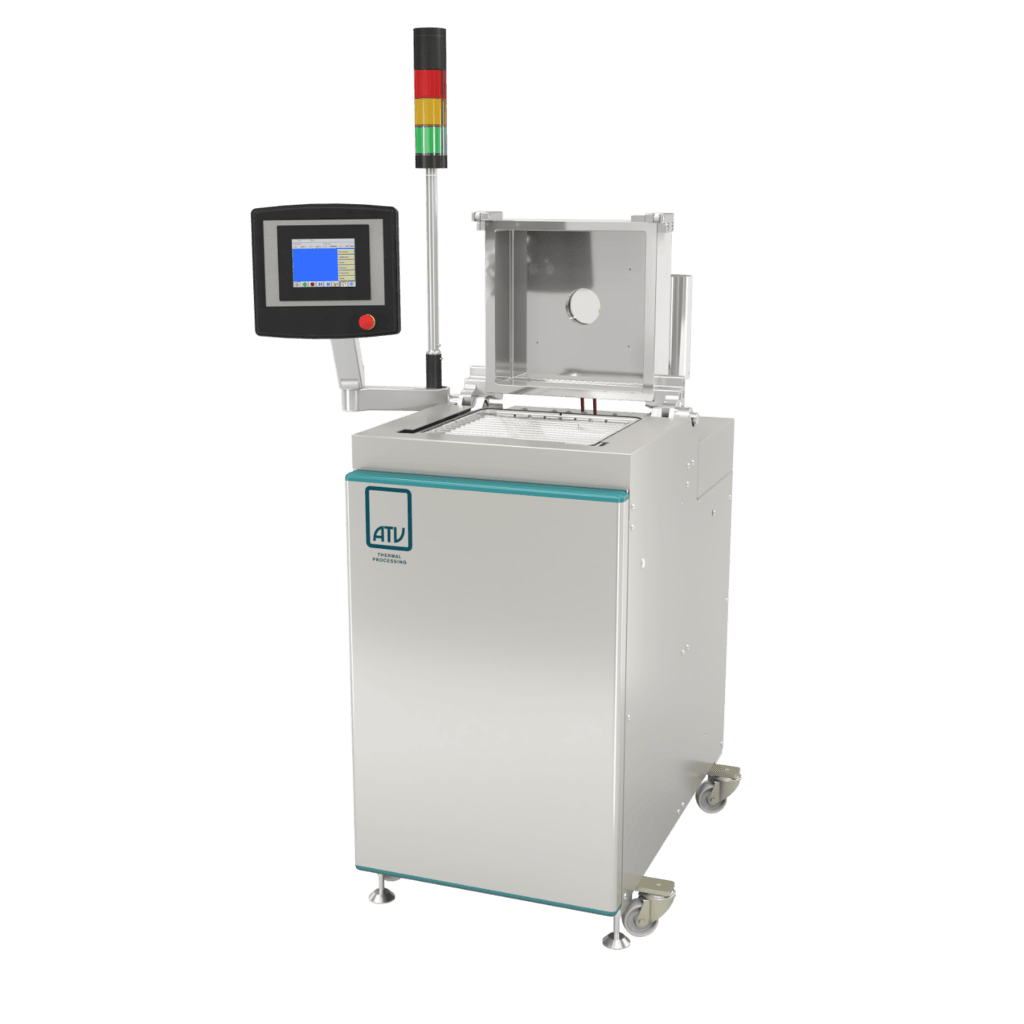

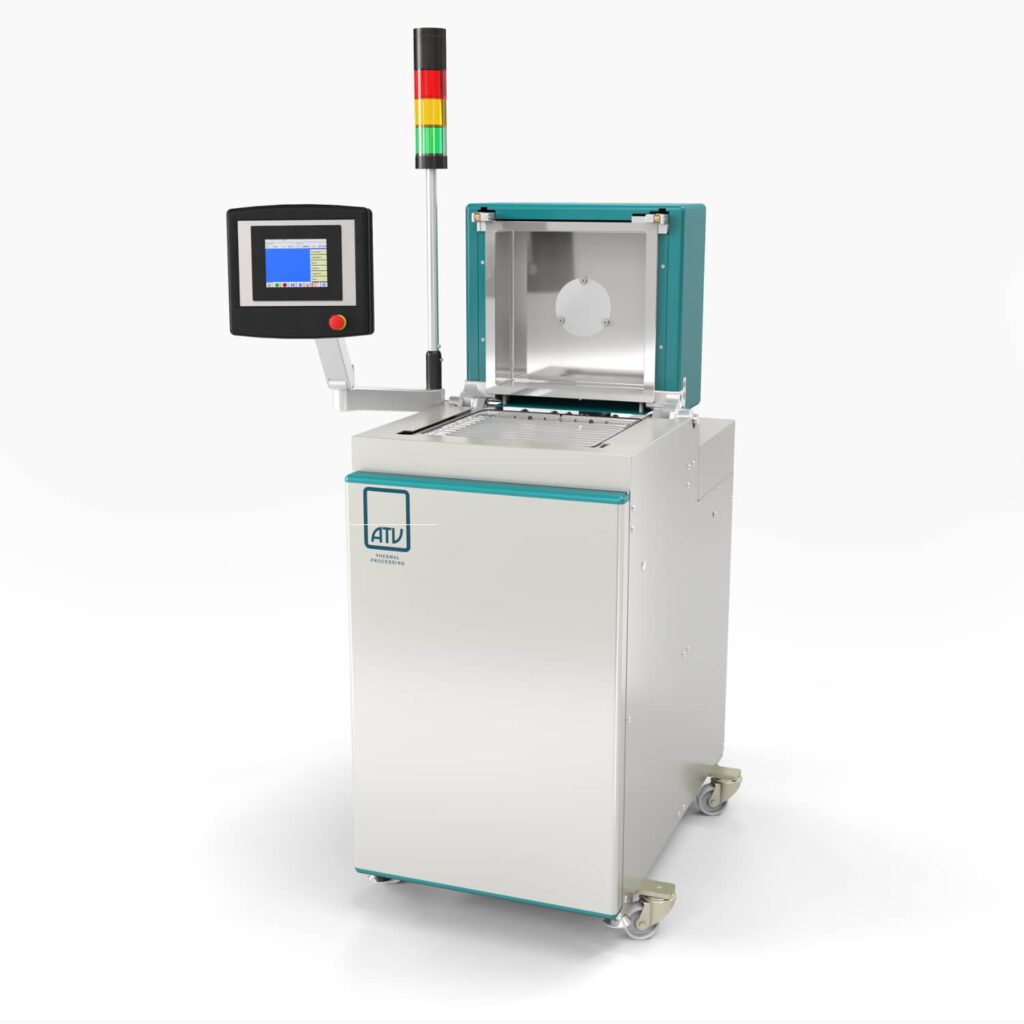

SRO-716 VACUUM REFLOW SOLDERING SYSTEM WITH OVERPRESSURE
IR VACUUM REFLOW SYSTEM FOR R&D PURPOSES AND PILOT LINE PRODUCTION
The SRO-716 Overpressure System is the perfect solution for precise soldering processes that require void-free solder joints under overpressure. Our system uses a cold-wall reactor and is heated by powerful infrared lamps, which ensure uniform heating of the process chamber over several heating zones. The maximum temperature of the system is 450°C (optionally up to 750°C). These ensure homogeneous heating and precise temperature control. The overpressure system ensures a void-free soldering atmosphere thanks to an overpressure of up to 3bar. The Nitrogen (N₂) ensures controlled cooling, while the HCOOH step ensures optimum wetting. Precise control is provided by the powerful WinATV software, which enables detailed adjustment of the process sequences. With a heated area of 314 x 314mm and a height of 96mm above the heating area, the SRO-716 Overpressure System is suitable for a wide range of electronic components and packages.
Facts & Options about our SRO-716 Overpressure
HIGHLIGHTS SRO-716 Overpressure
- Direct IR Heating
- Surface touch TC
- Multiple TC monitoring
- Exchangeable Ceramic Heater Plate
- Process temperature 450°C up to 750°C (optional configuration)
- Oxygen < 1.0 ppm with purified N2
- 100 steps / programm
- Automatic lid closing/opening and locking/unlocking
COMMON APPLICATIONS SRO-716 Overpressure
- Power Semiconductors (IGBT, SiC-MOSFET)
- Sensors
- MEMS
- High Power LED
- MMICs
- CPV, Laser bar
- Die Attachment
- Hybrid Assembly
- Flip Chip
- Package Sealing
TECHNICAL DATA SRO-716 Overpressure
depending on system configuration/optionals
- Dimensions
- 1090 × 630 x 1830mm (LxWxH)
- Weight
- ca. 205 kg (minimum configuration)
- Working Height
- 1000mm ± 40mm
- Maximum Product Height
- up to 96mm
- Heated Area
- 314 x 314mm
- Heating Method
- Array of 12 IR lamps in 3 zones
- Temperature
- Process temperature up to 450°C
- Extended temperature range 750°C (optional)
- Vaccum Level
- 10-2 mbar
- 10-5 mbar (optional)
OPTIONS SRO-716 Overpressure
- High vacuum
- Custom substrate fixture
- Lift pins
- Additional gas lines
